RSV4 Key Lock Removal: Lighten Your Bike for Track Use!

Product Description

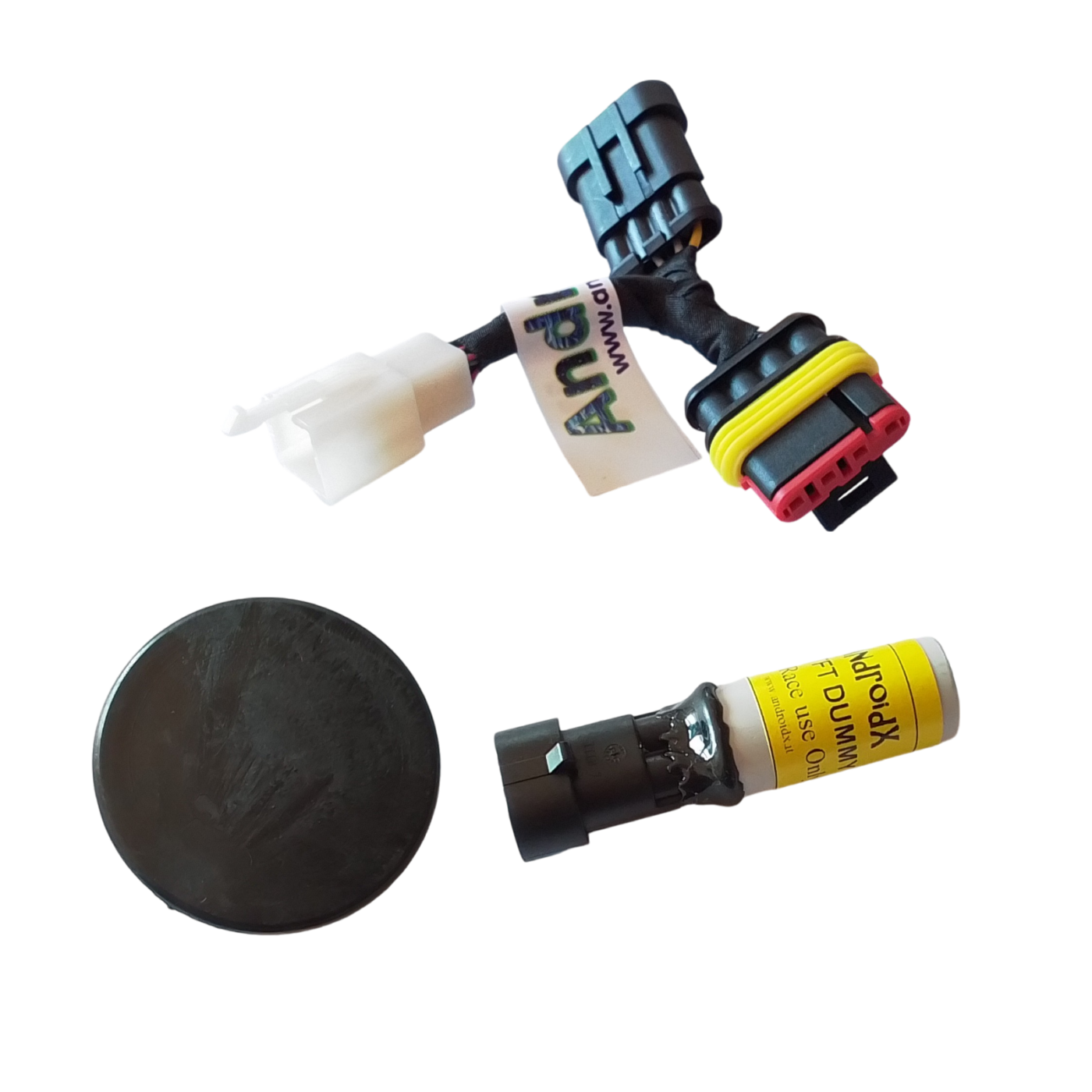

The kit allows for RSV4 key lock removal and ensures continuous transponder recognition. It includes the Dummy Key, which simulates the key, wiring that replaces the removed key block (using the emergency button to power up the dashboard), and a cover to fill the hole on the steering plate.

Benefits of the Key Removal Kit

• starts the bike without the original key
• works with the original dashboard

Who is this product for?

The kit is designed primarily for track use, enabling standard dashboards on race-prepared bikes, allowing you to start the bike without using keys. The dummy key simulates the key’s transponder and allows the dashboard to power up immediately when energized. For V4 models up to 2020.

Product Technical Specifications

To use the kit, you must know the user codes on the dashboard and the technical code to program the dummy key.

For installation, disconnect the transponder antenna connector and connect the dummy key to the bike’s wiring. Insert the T-harness between the removed key lock wiring and the right-hand switch assembly.

Note: Version 1: uses the bike’s stock right red button to power on the dashboard.
